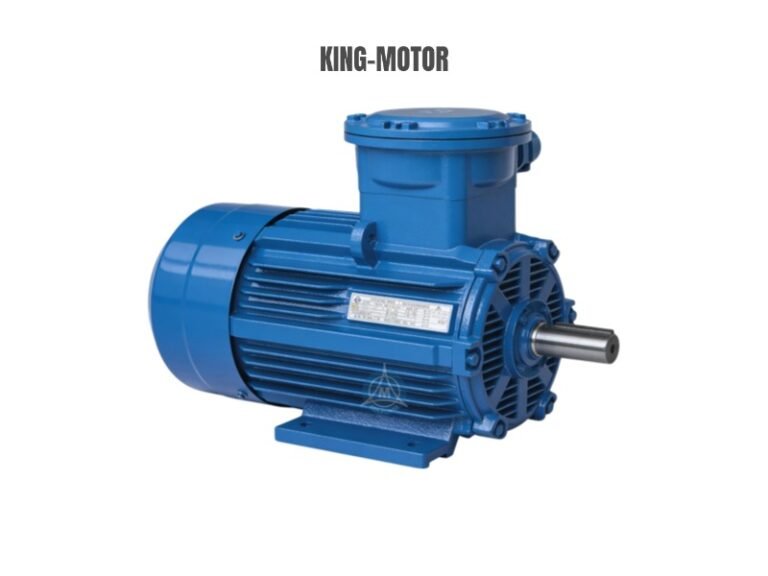

YBX3 explosion-proof motor series -TEFC

Frame size: 80~355L
Output power: 0.75 to 355kW
Rated voltage: 380V or other voltage
Rated frequency: 50HZ
Working system: Continuous working system S1
Protection level: IP55
Cooling mode: IC411
Insulation class: F grade insulation
Flameproof class: Ex d IIB T4
Installation:
IMB3 (horizontal foot mount);
IMB5 (horizontally mounted with large flange);
IMB35 (horizontal foot mount with large flange); For mounting dimensions, refer to the attached table.Energy efficiency grade: in line with the Chinese national standard GB18613-2020 energy efficiency requirements
